MariTox Marine Flame Retardant Medium Voltage Cables

MTX 3.6/6kV, 6/10kV, 8.7/15kV XLPE Insulated, LSOH (SHF1)Sheathed, Armoured Flame Retardant MV Power Cables (SHF1 Inner Sheath)

Armoured Flame Retardant MV Power Cables (SHF1 Inner Sheath)

Application
These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free.

Standards
 IEC 60092-350/351/354/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

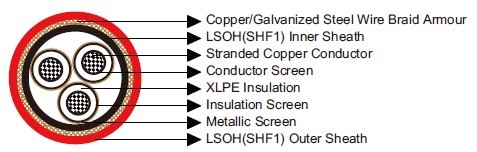

Construction
 Conductors: Class 2 stranded copper conductor.
 Conductor Screen: Semi-conducting layer (tape/compound).
 Insulation: XLPE.
 Insulation Screen: Semi-conducting layer (tape/compound).
 Metallic Screen: Copper tape
 Inner Sheath: LSOH (SHF1).
 Armour: Copper wire braid or galvanized steel wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Coloured tape shall be inserted under metallic screen.
3core: Red, Yellow, Blue.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 12×OD (single core); 9×OD (three core)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
3.6/6kV

Part No.

Construction
No. of
cores×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal
Overall Diameter mm

Nominal Weight kg/km

Inner

Outer

MTX-3.6/6KV-RZ1MZ1-1C10

1×10

2.5

1.3

1.0

19.2

560

MTX-3.6/6KV-RZ1MZ1-1C16

1×16

2.5

1.3

1.0

20.1

650

MTX-3.6/6KV-RZ1MZ1-1C25

1×25

2.5

1.4

1.1

21.8

800

MTX-3.6/6KV-RZ1MZ1-1C35

1×35

2.5

1.4

1.1

23.0

940

MTX-3.6/6KV-RZ1MZ1-1C50

1×50

2.5

1.5

1.2

24.7

1120

MTX-3.6/6KV-RZ1MZ1-1C70

1×70

2.5

1.6

1.2

26.7

1390

MTX-3.6/6KV-RZ1MZ1-1C95

1×95

2.5

1.6

1.3

28.8

1720

MTX-3.6/6KV-RZ1MZ1-1C120

1×120

2.5

1.7

1.3

30.6

2020

MTX-3.6/6KV-RZ1MZ1-1C150

1×150

2.5

1.8

1.3

32.4

2350

MTX-3.6/6KV-RZ1MZ1-1C185

1×185

2.5

1.8

1.4

34.4

2780

MTX-3.6/6KV-RZ1MZ1-1C240

1×240

2.6

2.0

1.5

38.4

3580

MTX-3.6/6KV-RZ1MZ1-1C300

1×300

2.8

2.1

1.6

41.6

4310

MTX-3.6/6KV-RZ1MZ1-1C400

1×400

3.0

2.2

1.7

45.8

5440

MTX-3.6/6KV-RZ1MZ1-1C500

1×500

3.2

2.4

1.7

49.3

6450

MTX-3.6/6KV-RZ1MZ1-1C630

1×630

3.2

2.5

1.9

54.1

8110

MTX-3.6/6KV-RZ1MZ1-3C10

3×10

2.5

1.9

1.4

36.3

1710

MTX-3.6/6KV-RZ1MZ1-3C16

3×16

2.5

2.0

1.5

38.8

2030

MTX-3.6/6KV-RZ1MZ1-3C25

3×25

2.5

2.1

1.6

42.0

2500

MTX-3.6/6KV-RZ1MZ1-3C35

3×35

2.5

2.2

1.6

44.8

2950

MTX-3.6/6KV-RZ1MZ1-3C50

3×50

2.5

2.3

1.7

48.0

3510

MTX-3.6/6KV-RZ1MZ1-3C70

3×70

2.5

2.5

1.8

52.5

4420

MTX-3.6/6KV-RZ1MZ1-3C95

3×95

2.5

2.6

1.9

57.0

5470

MTX-3.6/6KV-RZ1MZ1-3C120

3×120

2.5

2.8

2.0

61.0

6480

MTX-3.6/6KV-RZ1MZ1-3C150

3×150

2.5

2.9

2.1

64.9

7540

MTX-3.6/6KV-RZ1MZ1-3C185

3×185

2.5

3.1

2.2

69.3

8940

MTX-3.6/6KV-RZ1MZ1-3C240

3×240

2.6

3.3

2.4

76.4

11180

6/10kV

Part No.

Construction
No. of
cores×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal
Overall Diameter mm

Nominal Weight kg/km

Inner

Outer

MTX-6/10KV-RZ1MZ1-1C16

1×16

3.4

1.4

1.1

22.3

750

MTX-6/10KV-RZ1MZ1-1C25

1×25

3.4

1.5

1.1

23.8

890

MTX-6/10KV-RZ1MZ1-1C35

1×35

3.4

1.5

1.2

25.2

1040

MTX-6/10KV-RZ1MZ1-1C50

1×50

3.4

1.6

1.2

26.7

1220

MTX-6/10KV-RZ1MZ1-1C70

1×70

3.4

1.6

1.2

28.5

1480

MTX-6/10KV-RZ1MZ1-1C95

1×95

3.4

1.7

1.3

30.8

1830

MTX-6/10KV-RZ1MZ1-1C120

1×120

3.4

1.8

1.3

32.6

2140

MTX-6/10KV-RZ1MZ1-1C150

1×150

3.4

1.8

1.4

34.4

2470

MTX-6/10KV-RZ1MZ1-1C185

1×185

3.4

1.9

1.4

36.9

2990

MTX-6/10KV-RZ1MZ1-1C240

1×240

3.4

2.0

1.5

40.0

3680

MTX-6/10KV-RZ1MZ1-1C300

1×300

3.4

2.1

1.6

42.8

4390

MTX-6/10KV-RZ1MZ1-1C400

1×400

3.4

2.3

1.7

46.8

5510

MTX-6/10KV-RZ1MZ1-1C500

1×500

3.4

2.4

1.8

49.9

6480

MTX-6/10KV-RZ1MZ1-1C630

1×630

3.4

2.5

1.9

54.5

8130

MTX-6/10KV-RZ1MZ1-3C16

3×16

3.4

2.1

1.6

43.1

2350

MTX-6/10KV-RZ1MZ1-3C25

3×25

3.4

2.2

1.7

46.3

2840

MTX-6/10KV-RZ1MZ1-3C35

3×35

3.4

2.3

1.7

49.1

3310

MTX-6/10KV-RZ1MZ1-3C50

3×50

3.4

2.5

1.8

52.5

3910

MTX-6/10KV-RZ1MZ1-3C70

3×70

3.4

2.6

1.9

56.8

4820

MTX-6/10KV-RZ1MZ1-3C95

3×95

3.4

2.8

2.0

61.4

5930

MTX-6/10KV-RZ1MZ1-3C120

3×120

3.4

2.9

2.1

65.3

6940

MTX-6/10KV-RZ1MZ1-3C150

3×150

3.4

3.1

2.2

69.3

8050

MTX-6/10KV-RZ1MZ1-3C185

3×185

3.4

3.2

2.3

73.6

9460

MTX-6/10KV-RZ1MZ1-3C240

3×240

3.4

3.4

2.5

80.2

11680

8.7/15kV

Part No.

Construction
No. of
cores×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal
Overall Diameter mm

Nominal Weight kg/km

Inner

Outer

MTX-8.7/15KV-RZ1MZ1-1C25

1×25

4.5

1.6

1.2

26.4

1030

MTX-8.7/15KV-RZ1MZ1-1C35

1×35

4.5

1.6

1.2

27.6

1180

MTX-8.7/15KV-RZ1MZ1-1C50

1×50

4.5

1.7

1.3

29.3

1370

MTX-8.7/15KV-RZ1MZ1-1C70

1×70

4.5

1.7

1.3

31.1

1650

MTX-8.7/15KV-RZ1MZ1-1C95

1×95

4.5

1.8

1.4

33.4

2010

MTX-8.7/15KV-RZ1MZ1-1C120

1×120

4.5

1.9

1.4

35.7

2410

MTX-8.7/15KV-RZ1MZ1-1C150

1×150

4.5

1.9

1.5

37.5

2760

MTX-8.7/15KV-RZ1MZ1-1C185

1×185

4.5

2.0

1.5

39.5

3200

MTX-8.7/15KV-RZ1MZ1-1C240

1×240

4.5

2.1

1.6

42.6

3910

MTX-8.7/15KV-RZ1MZ1-1C300

1×300

4.5

2.2

1.6

45.2

4610

MTX-8.7/15KV-RZ1MZ1-1C400

1×400

4.5

2.3

1.7

49.0

5730

MTX-8.7/15KV-RZ1MZ1-1C500

1×500

4.5

2.5

1.8

52.3

6740

MTX-8.7/15KV-RZ1MZ1-1C630

1×630

4.5

2.6

1.9

56.9

8400

MTX-8.7/15KV-RZ1MZ1-3C25

3×25

4.5

2.4

1.8

51.6

3300

MTX-8.7/15KV-RZ1MZ1-3C35

3×35

4.5

2.5

1.9

54.6

3820

MTX-8.7/15KV-RZ1MZ1-3C50

3×50

4.5

2.6

1.9

57.6

4400

MTX-8.7/15KV-RZ1MZ1-3C70

3×70

4.5

2.8

2.0

62.1

5370

MTX-8.7/15KV-RZ1MZ1-3C95

3×95

4.5

3.0

2.2

67.0

6550

MTX-8.7/15KV-RZ1MZ1-3C120

3×120

4.5

3.1

2.3

70.8

7580

MTX-8.7/15KV-RZ1MZ1-3C150

3×150

4.5

3.2

2.3

74.5

8680

MTX-8.7/15KV-RZ1MZ1-3C185

3×185

4.5

3.4

2.5

79.2

10180

MTX-8.7/15KV-RZ1MZ1-3C240

3×240

4.5

3.6

2.6

85.6

12420
